EPW50-48A,华为通信电源，华为安捷信EPW50-48A 48v3000w通信电源50A，华为安捷信EPW50-48A 48v3000w通信电源50A 华为安捷信EPW50-48A
EPW50-48A 华为48v3000w通信电源模块50A 华为EPW50-48A
华为安捷信EPW50-48A助力国家新能源，电压可改。
山东格伦德电源电源科技有限公司 联系人：孟经理 咨询热线：183-6606-8668

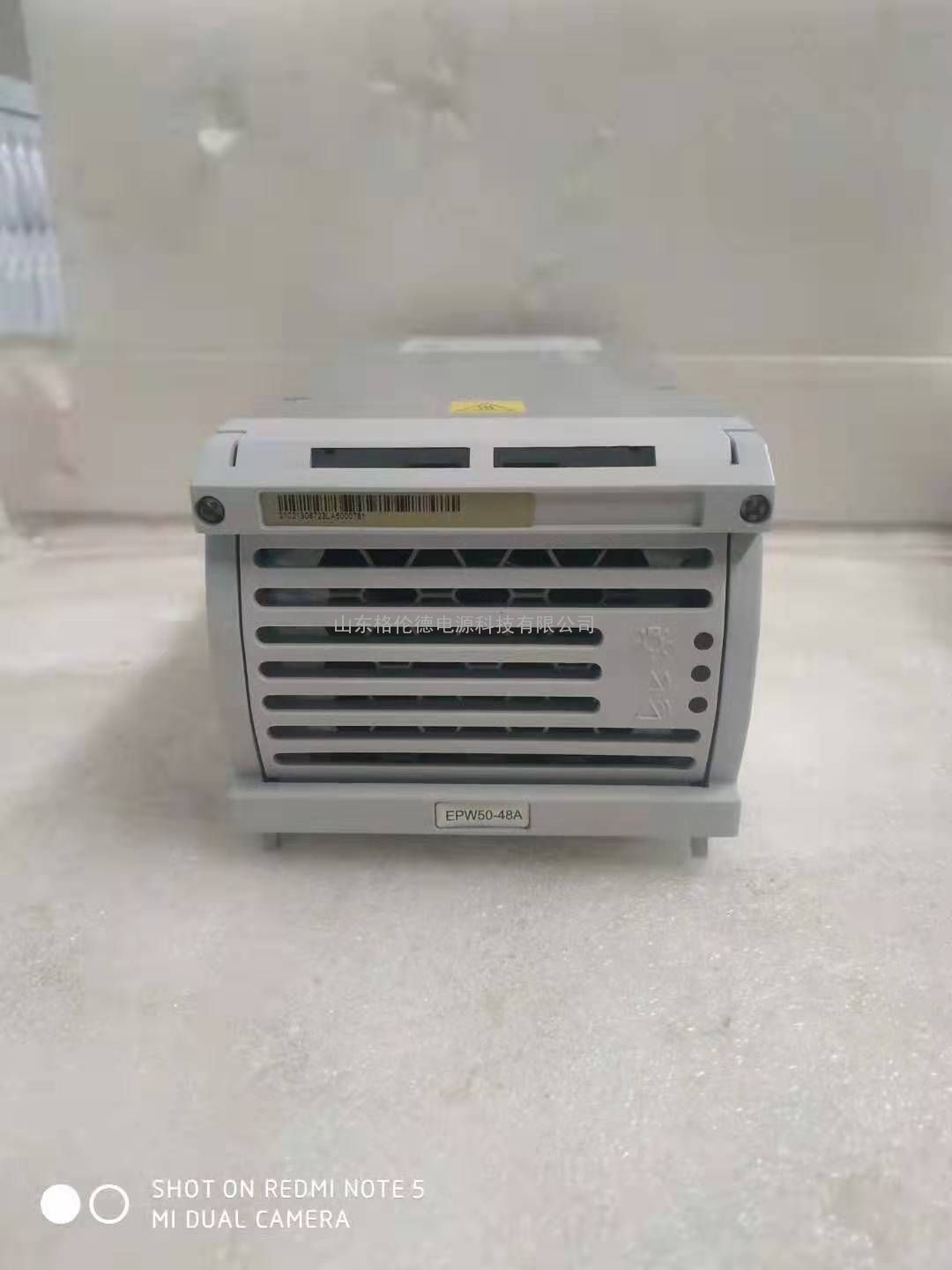

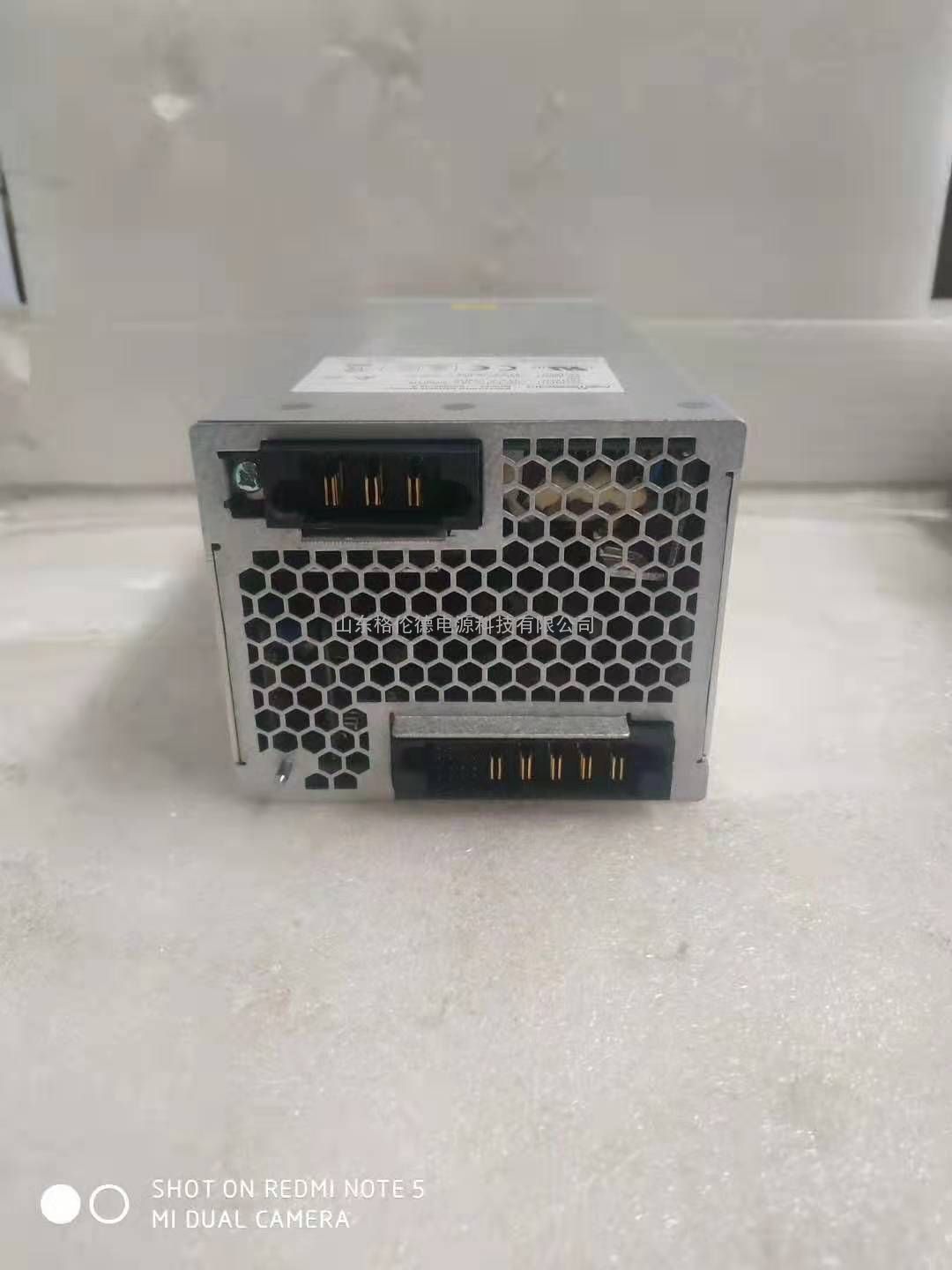

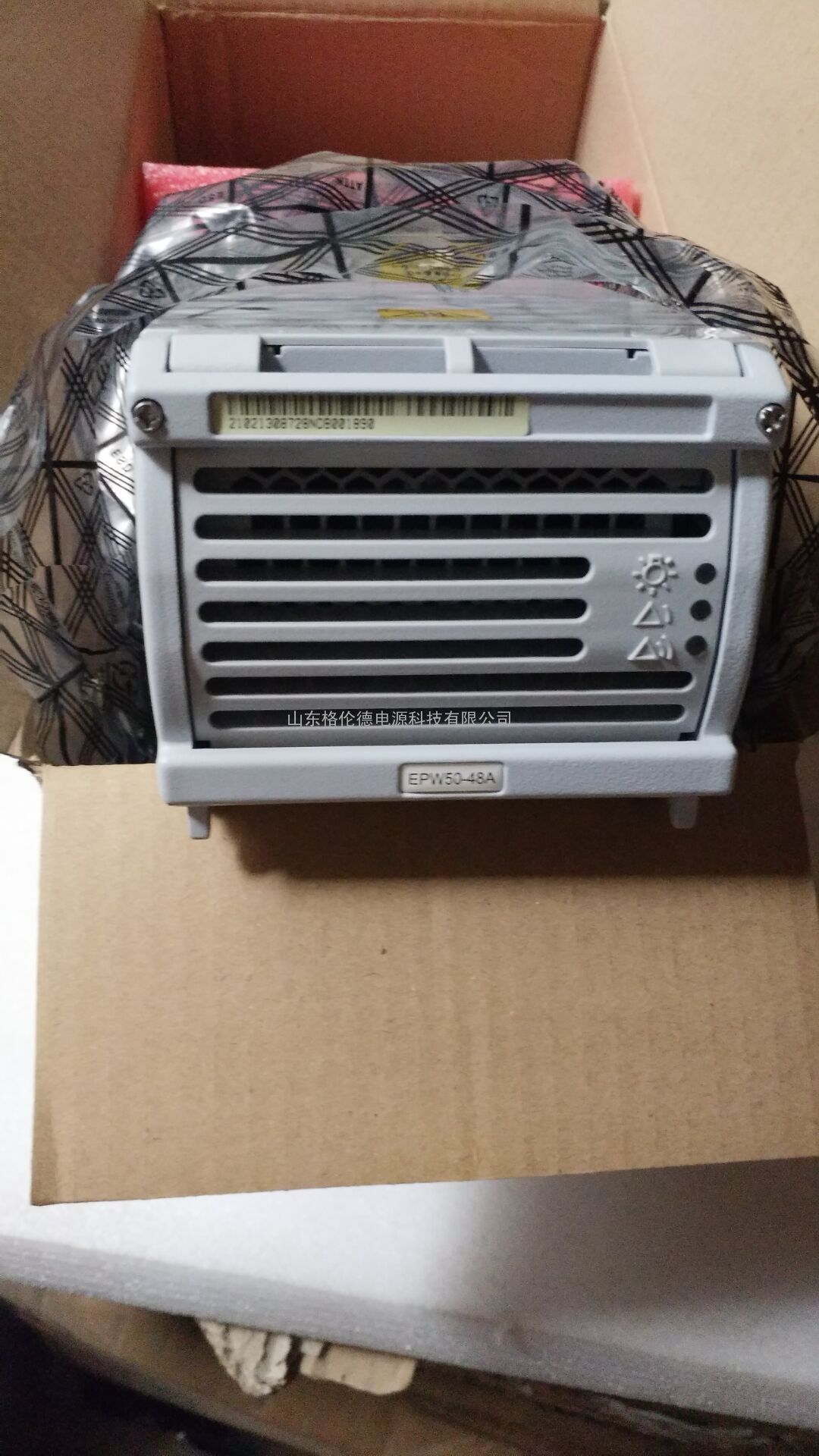

华为安捷信EPW50-48A是一款全数字整流模块电源，能将单相交流输入电压转换为稳定
的直流输出电压，具有高可靠、高转换效率、低噪声等特点，并有完善的
输入保护、输出保护、软启动、热插拔等功能，可并联组成大容量整流电
源。该整流模块采用先进的CAN通信技术，可以与监控模块配合实现输出
电压调整、远程告警、模块休眠等功能。
？？**效率：≥96%
？？输入电压范围：85～300VAC
？？工作温度范围：-40～+75℃
？？总谐波失真（THD）：≤5%
？？支持在线热插拔功能
？？全数字化控制
？？支持智能电表
？？支持RS485通讯
？？支持电压电流调整功能
？？满足RoHS要求
？？通过TUV、CE、UL、CB认证
R4850N1
产品简介
产品特性
基本参数
尺寸 88.9（高）mm×103（宽）mm×243（深）mm
重量
≤2.8kg
散热模式 风冷
环境指标
工作温度 -40℃～+75℃
存储温度 -40℃～+75℃
相对湿度 5%～95%（无凝露）
海拔
0～4000m （海拔在3000～4000m范围，每升高200m
温度指标降低1℃）
输入特性
工作电压 85～300VAC
输入电压制式 单相三线制（或110VAC双火线）
输入频率 45～65Hz，额定值：50Hz/60Hz
**输入电流 ≤19.5A
功率因素 ≥0.99
THD ≤5%
输出特性
输出电压
42～58VDC
默认输出：53.5VDC
输出功率 2900W（176～300VAC）
主要参数
效率(%)
负载率
输出效率曲线
整流模块
R4850N1
保护特性
输入过压保护 过压保护点：>300VAC
输入欠压保护
欠压保护点：<85VAC
输出过压保护
58.5～60.5VDC（监控模块可调）
输出短路保护
可长期短路
过温保护
过温保护点：>75℃
可靠性指标
MTBF
>500,000小时
噪音
指标 ≤50dB
安规 /EMC/ 防雷特性
安规认证
通过TUV、CE、UL认证
获得CB证书
符合UL60950-1
IEC60950-1
CAN/CSAC22.2
No.60950 -1
EN60950-1
EMC
EN55022 Class B
EN55024
EN61000-3-2
EN61000-3-3
ETSI EN300 386
ETSI EN301489
ITU-T K.20
防雷
YD 5098-2005 5KA
