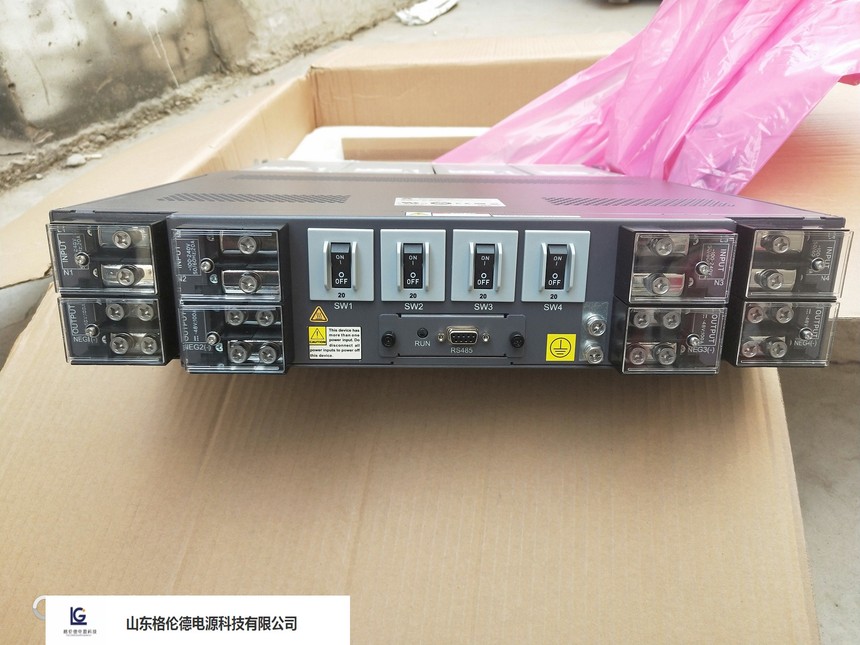

华为NE40E电源EPS200-4850A,华为通信电源EPS200-4850A参数及报价EPS200-4850A,华为通信电源,华为NE40E电源，华为NE40E电源EPS200-4850A,华为通信电源EPS200-4850A参数及报价，华为EPS200-4850A通信电源外观图1 EPS200-4850A外观示意图  EPS200-4850A将输入的交流电源经过AC/DC模块进行变换，输出稳定的直流电源。 山东格伦德电源科技有限公司 联系人：孟经理 咨询热线：183-6606-8668 概述
面板
技术指标
 说明：交流供电支持200-240V系统，支持供电电压（180~264V），不支持110V单相交流输入，可以支持110V双火线系统，要求双火线供电电压满足180V~264V。
Huawei ne40e power supply eps200-4850a, Huawei communication power supply eps200-4850a parameters and quotation, eps200-4850a, Huawei communication power supply, Huawei ne40e power supply, Huawei eps200-4850a communication power supply Appearance Figure 1 appearance of eps200-4850a Click to enlarge Eps200-4850a transforms the input AC power through the AC / DC module to output a stable DC power supply. Summary Table 1 power supply properties attribute describe describe Distribution cabinet - 220v-50 / 60hz-72000ma - no data - eps200-4850a BOM 02400376 Note: BOM of 3000W rectifier module is 02310fjd Model CR5B0PWRBX60 Table 2 power supply corresponding products and version support product Minimum software version NE40E-X8 V800R006C20 NE40E-X16 V800R006C20 panel Table 3 indicator light Name Indicator color Normal condition Abnormal state Abnormal reason Power operation indicator green bright Extinguish Mains failure (no AC input, AC input over undervoltage), module no output. Protection indicator yellow Extinguish bright Temperature warning (shutdown when the ambient temperature exceeds 65 ℃ ~ over temperature) Sleep shutdown (when sleep shutdown, the module only lights the protection indicator, and the module does not report the alarm) Fault indicator Red Extinguish bright Output overvoltage shutdown, fan failure, over temperature shutdown, no output caused by internal reasons of the module. Technical index project describe Dimensions (W x D x H) Distribution cabinet: 442.0mm x 580.0mm x 86.1mm Each power module: 103mm x 243mm x 89mm weight Distribution cabinet: 10.0kg Each power module: 2.8kg Number of AC input channels 4 inputs per box Rated voltage of AC input 200V ~ 240V AC input voltage range 180V ~ 264V AC input maximum current 16A / single module Number of DC output channels 4 outputs per frame DC output voltage 53.5V Maximum DC output current 55A / single module Typical power consumption 138w / single module Typical heat dissipation value 447.7btu/hour/single module Explain: AC power supply supports 200-240v system, supports power supply voltage (180-264v), does not support 110V single-phase AC input, can support 110V double live wire system, and requires that the power supply voltage of double live wire meet 180v-264v. 华为通信电源,华为高频开关电源,华为直流电源,华为电源柜,华为-48v开关电源,华为电源官网,华为通信电源柜,华为开关电源柜,华为R48,华为MTS,华为ETP48,华为TP48,华为5G电源 |
