山东格伦德电源科技有限公司  联系人：孟经理        咨询热线：183-6606-8668

ETP48100-B1（交流转直流配电盒模块）

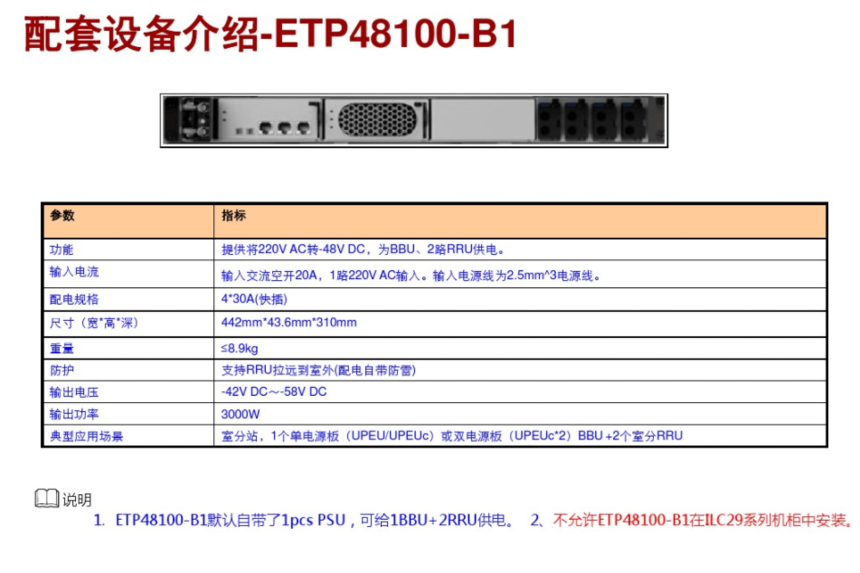

ETP48100-B1交流转直流配电盒参数

华为嵌入式通信电源模块华为ETP48100-B1按装DCDU/ETP48100电源输入线

　　a) 直流：裁剪16mm2蓝黑电源线并压接端子，连接至DCDU与电源柜

　　b) 交流：将交流输入电源线两端分别连接至ETP48100与AC220V电源插排，多余线缆盘绕绑扎在机框旁边

　　线缆布放时须用绝缘胶带缠绕端头，使之绝缘，电源柜侧接电时，须使用经过绝缘处理的工具，接电前需确认空开关闭或拔出熔丝

　　电源线和信号线需间隔30mm固定，室内用白色线扣十字交叉绑扎，齐根剪平不拉尖，室外用黑色线扣，留3-5mm后剪掉

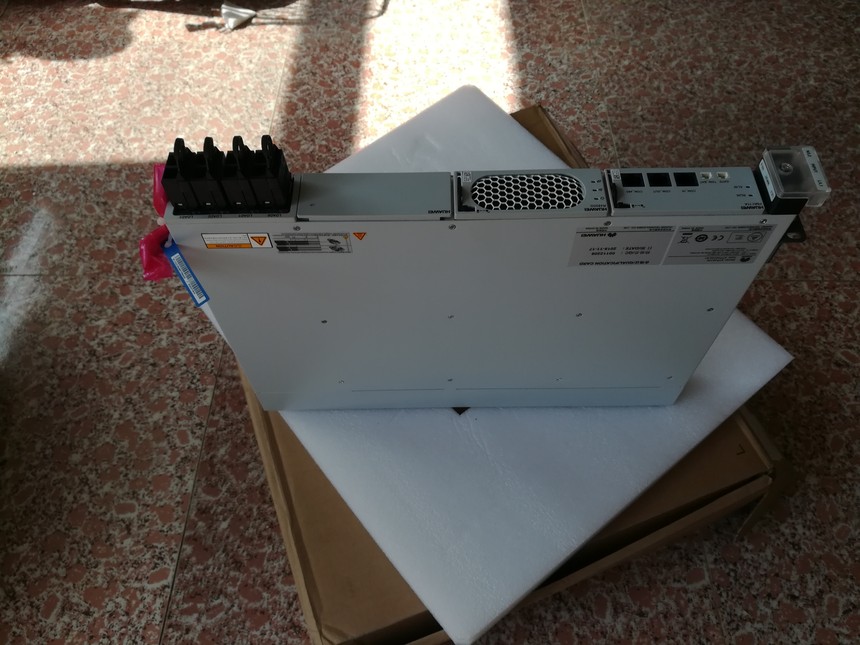

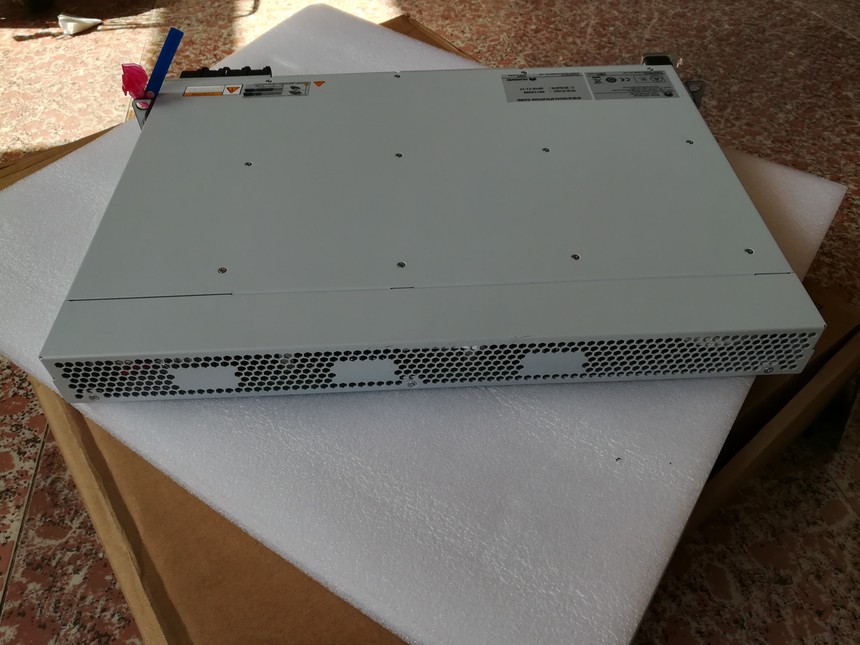

　　华为ETP 48100-B1 50A -48V 100A通信电源，OLT C300/MA5680T电源

　　可以带中兴C220/C300/C320,华MA5680T/MA5683T 业务板满配配置

　　220V转48V 交流转之流 OLT电源转接板

　　MOdel：ETP48100

　　Type：ETP48100-B1

　　输入220v，输出48v，整流模块R4850G2，48v50a模块,满配两个

　　华为ETP48100-B1华为嵌入式通信电源

　　监控模块PMU11A

　　华为(HUAWEI) ETP48100-B1 OLT光接入网电源转接板50A交流转直流电源

　　华为ETP48100-B1嵌入式电源,输出-48V50

　　华为ETP48100-B1电源-48v50A大功率100A通信电源系统

　　华为ETP48100-A1/ETP48100-B1】价格_厂家

　　ETP48100-B1_华为ETP48100-B1

　　华为(Huawei)ETP48100-B1 OLT光接入网电源图片,商品介绍

　　现货出售

　　华为嵌入式通信电源模块ETP48100-B1

　　华为ETP48100-B14815电源48100适用

　　华为ETP48100-A1/ETP48100-B1系统参数和安装使用

　　华为ETP48100（交流转直流配电系统）

华为通信电源,华为高频开关电源,华为直流电源,华为电源柜,华为-48v开关电源,华为电源官网,华为通信电源柜,华为开关电源柜,华为R48,华为MTS,华为ETP48,华为TP48,华为5G电源

Huawei etp48100, Huawei communication power supply, Huawei switching power supply, etp48100-b1, Huawei switching power supply etp48100-b1, Huawei communication OLT power supply etp48100 parameters and quotation


Etp48100-b1 (AC to DC distribution box module)

Parameters of etp48100-b1 AC to DC distribution box

parameter

index

function

Provide power supply for BBU and 2-way RRU from 220V AC to - 48V DC.

Input current

Input AC air switch 20a, 1 channel of 220V AC input, and input power line is 25mm2 power line.

Distribution specification

4 * 30A (quick plug)

output voltage

-42V DC~-58V DC

output power

3000W

Application scenario

Room sub station, 1 single power board or dual power board (upeu) BBU + 2 room sub RRU

Huawei embedded communication power module Huawei etp48100-b1 is installed with dcdu / etp48100 power input cable

a) DC: cut 16mm2 blue black power line and crimp the terminal to connect dcdu and power cabinet

b) AC: connect the two ends of the AC input power line to the etp48100 and AC220V power strip respectively, and the redundant cable is coiled and bound beside the frame

When laying the cable, wrap the end with insulating tape to insulate it. When connecting the power supply cabinet side, use insulated tools. Before connecting the power, make sure that the air switch is closed or the fuse is pulled out

The power line and signal line shall be fixed at an interval of 30mm. The white wire buckle shall be used for cross binding indoors. The whole cable shall be cut flat without pulling the point. The black wire buckle shall be used outdoors. The cable shall be cut off after 3-5mm is reserved

Huawei ETP 48100-b1 50A - 48V 100A communication power supply, OLT C300 / ma5680t power supply

It can be fully configured with ZTE c220 / C300 / c320 and huama5680t / ma5683t service boards

220V to 48V AC to current OLT power adapter board

MOdel：ETP48100

Type：ETP48100-B1

Input 220V, output 48V, rectifier module r4850g2, 48v50a, fully equipped with two

Huawei etp48100-b1 Huawei embedded communication power supply

Monitoring module pmu11a

Huawei (Huawei) etp48100-b1 OLT optical access network power switch board 50A AC to DC power supply

Huawei etp48100-b1 embedded power supply, output - 48v50

Huawei etp488100-b1 power supply - 48v50a high power 100A communication power supply system

Huawei etp48100-a1 / etp48100-b1] price manufacturer

Etp48100-b1 Huawei etp48100-b1

Huawei etp48100-b1 OLT optical access network power supply picture, product introduction

Spot sale

Huawei embedded communication power module etp48100-b1

Huawei etp48100-b14815 power supply 48100 applicable

Huawei etp48100-a1 / etp48100-b1 system parameters and installation

Huawei etp48100 (AC to DC power distribution system)
