室外一体化机柜简介

室外一体化机柜简介

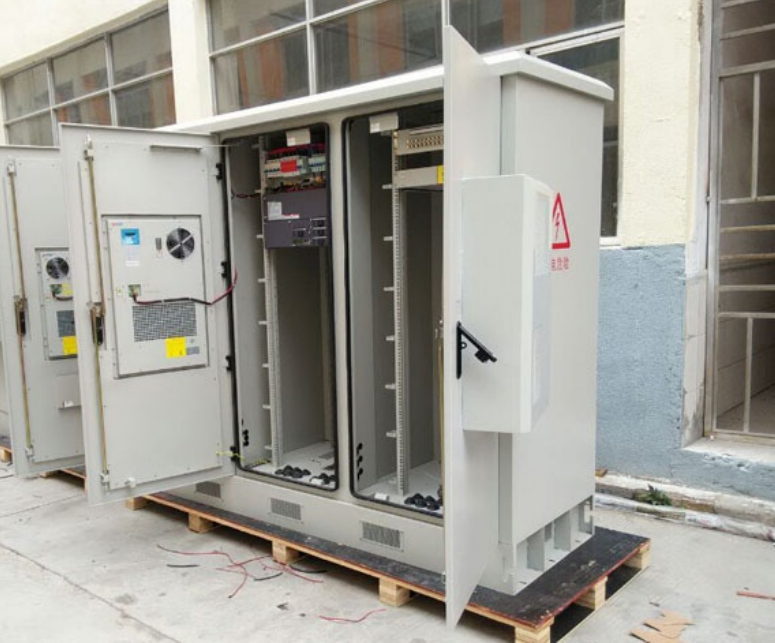

室外一体化机柜按照使⽤地点可分为室外一体化机柜和室内一体化体机柜。室外一体化机柜主要应于室外环境，如公路边、公 园、楼顶、平地安装的机柜，机柜内可安装基站设备、电源设备、蓄电池、温控设备、传输设备及其他配套设备 或为以上设备预留安装空间及换热容量，能为内部设备正常运⾏提供可靠的机械和环境保护的机柜。室内⼀体化机柜顾 名思义⽤于室内环境的机柜，室内机柜往往看作是⽤来装IT设备的柜⼦。 室外一体化机柜按材料来分，可分为金属室外一体化机柜和非金属室外一体化机柜。金属室外一体化机柜常见的材料有钣⾦、镀锌板、不锈钢、 铝合⾦等。非金属室外一体化机柜常见的材料有玻璃钢等复合材料等。下⾯为⼤家分别介绍下室外⼀体化机柜和室内⼀体化机柜。 室外⼀体化机柜介绍： 室外⼀体化机柜主要⽤于⽆线通信基站，包括新⼀代3G系统，通信/⽹络综合业务，接⼊/传输交换局站，应急通信/传输 等。室外机柜外板采⽤采⽤厚度⼤于1.5mm的镀锌板，由外箱体、内部⾦⼯件及附件装配组成。机柜内部按功能划分成 设备舱和蓄电池舱。箱体结构紧凑，安装简便，密封性能极好。 室外⼀体化机柜主要特点 1 箱体具有防尘、防晒、防⾬等特点，全⽅位适应户外环境。

2 设备仓柜体采⽤空调散热(也可选⽤热交换器作为散热设备)，MTBF≥50000h。 3 蓄电池柜采⽤空调或半导体散热制冷⽅式。 4 每个机柜都装有直流-48V的照明灯具 5 机柜布局合理，线缆引⼊、固定和接地等操作便利，维护⽅便。电源线、信号线和光缆都有独⽴的进线孔，不会相互 ⼲扰。 6 机柜内所使⽤的线缆都采⽤阻燃性材料。 室外⼀体化机柜主要技术性能指标 1 使⽤条件：环境温度：-40℃~+60℃;环境湿度：≤95﹪(+40℃时);⼤⽓压⼒：70kPa~106kPa;1 使⽤条件：环境温度：-40℃~+60℃;环境湿度：≤95﹪(+40℃时);⼤⽓压⼒：70kPa~106kPa; 2材料：热浸锌板 3表⾯处理：脱脂、除锈、防锈磷化(或镀锌)、喷塑; 4机柜承重≥600㎏。 5箱体防护等级：IP55 级; 6阻燃：符合GB5169.7 实验A要求; 7绝缘电阻：接地装置与箱体⾦⼯件之间的绝缘电阻不⼩于2X104M /500V(DC); 8耐电压：接地装置与箱体⾦⼯件之间的耐电压不⼩于3000V(DC)/1min; 9机械强度：各表⾯承受垂直压⼒>980N，门打开后最外端承受垂直压⼒>200N。

室内⼀体化机柜介绍 ⼀般它的长度规格有600,800mm ，宽度规格有600,800,1000mm ，⾼度规格是42U,36U,24U。早期所⽤的机柜⼤都是 ⽤铸件或⾓钢经螺钉、铆钉连接或焊接成机柜框架，再加由薄钢板制成的盖板(门)⽽成。这种机柜的体积⼤、笨重、外 形简陋，已被淘汰。随着晶体管、集成电路的使⽤和各种元器件的超⼩型化，机柜的结构也向⼩型化、积⽊化⽅向发 展。机柜已由过去的整⾯板结构发展成为具有⼀定尺⼨系列的插箱、插件结构。插箱、插件的组装排列⽅式分⽔平排列 和垂直排列两类。机柜材料普遍采⽤薄钢板、各种断⾯形状的钢型材、铝型材及各种⼯程塑料等。机柜的框架除⽤焊 接、螺钉连接外，还采⽤粘接⼯艺。 机柜按构件的承重、材料及其制造⼯艺的不同，可分为型材和薄板两种基本结构。 ①型材结构机柜:有钢型材机柜和铝型材机柜两种。钢形材机柜由异型⽆缝钢管为⽴柱组成。这种机柜的刚度和强度都很 好，适⽤于重型设备。由铝合⾦型材组成的铝型材机柜具有⼀定的刚度和强度，适⽤于⼀般或轻型设备。这种机柜重量 轻，加⼯量少，外形美观，得到⼴泛应⽤。 ②薄板结构机柜:整板式机柜，其侧板为⼀整块钢板弯折成形。这种机柜刚度和强度均较好，适⽤于重型或⼀般设备。但 因侧板不可拆卸，使组装、维修不⽅便。弯板⽴柱式机柜的结构与型材机柜相似，⽽⽴柱则由钢板弯折⽽成。这种机柜 具有⼀定的刚度和强度，适⽤于⼀般设备。 根据需要机柜还装有机柜附件。其主要附件有固定或可伸缩的导轨、锁紧装置、铰链、⾛线槽、⾛线架和屏蔽梳形簧⽚ 等。

技术要求技术要求 (1) 应具有良好的技术性能。机柜应具有抗振动、抗冲击、耐腐蚀、防尘、防⽔、防辐射等性能，以便保证设备稳定可 靠地⼯作。 (2) 应具有良好的使⽤性和安全防护设施，便于操作、安装和维修，并能保证操作者安全。 (3) 应便于⽣产、组装、调试和包装运输。 (4) 应合乎标准化、规格化、系列化的要求。 (5) 造型美观、适⽤、⾊彩协调。 在IDC机房内，机柜⼀般指的是服务器机柜。 服务器机柜为安装服务器、显⽰器、UPS等19"标准设备及⾮19"标准的设备专⽤的机柜，服务器机柜，⽤来组合安装⾯ 板、插件、插箱、电⼦元件、器件和机械零件与部件，使其构成⼀个整体的安装箱。服务器机柜由框架和盖板(门)组 成，⼀般具有长⽅体的外形，落地放置。它为电⼦设备正常⼯作提供相适应的环境和安全防护。这是仅次于系统级的⼀ 级组装。不具备封闭结构的机柜称为机架。 服务器机柜具有良好的技术性能。服务器机柜应具有抗振动、抗冲击、耐腐蚀、防尘、防⽔、防辐射等性能，以便保证 设备稳定可靠地⼯作。服务器机柜应具有良好的使⽤性和安全防护设施，便于操作、安装和维修，并能保证操作者安 全。 ⼀体化机柜是室外⼀体化机柜和室内⼀体化机柜的总称，

Introduction to outdoor integrated cabinet

The outdoor integrated cabinet can be divided into outdoor integrated cabinet and indoor integrated cabinet according to the location. The outdoor integrated cabinet shall be mainly used in the outdoor environment, such as the cabinet installed on the side of the road, the park, the roof of the building, and the flat ground. The cabinet can be installed with base station equipment, power supply equipment, storage battery, temperature control equipment, transmission equipment and other supporting equipment or reserved with installation space and heat exchange capacity for the above equipment, and can provide reliable mechanical and environmental protection for the normal operation of the internal equipment. As the name implies, the indoor integrated cabinet is the cabinet in the indoor environment. The indoor cabinet is often regarded as the cabinet for IT equipment. The outdoor integrated cabinet can be divided into metal outdoor integrated cabinet and non-metallic outdoor integrated cabinet according to materials. Common materials of metal outdoor integrated cabinet include sheet metal, galvanized steel, stainless steel, aluminum alloy, etc. Common materials of non-metallic outdoor integrated cabinet include composite materials such as glass fiber reinforced plastics. Next, we will introduce the outdoor cabinet and indoor cabinet respectively. Introduction to outdoor integrated cabinet: outdoor integrated cabinet is mainly used in the line communication base station, including the new generation 3G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc. The outer plate of the outdoor cabinet is made of galvanized sheet with a thickness of less than 1.5mm, which is composed of the outer box, the inner parts and accessories. The interior of the cabinet is divided into equipment compartment and battery compartment by function. The box has compact structure, easy installation and excellent sealing performance. The main features of the outdoor cabinet are as follows: 1. The cabinet has the characteristics of dust prevention, sun protection, and dust prevention, and the whole cabinet can adapt to the outdoor environment.
