华为R48100N1整流模块48v6000w 100A华为R48100N1
华为R48100N1,R48100N1,华为48V整流模块,华为R48100N,R48100N，华为R48100N1整流模块48v6000w 100A华为R48100N1
定输出的转换，输出电压可通过监控模块调节。具有软启动、完善的输入和输出保护、低噪声、可并联等
山东格伦德电源科技有限公司 联系人：孟经理 咨询热线：183-6606-8668
| 产品类别 | R48100n1 | |
| 基本指标 | 尺寸 | 238mm（宽）×378mm（深）×43mm（高） |
| 重量 | <6kg | |
| 散热模式 | 强制风冷 | |
| 输入特性 | 工作电压 | 260Vac~530Vac |
| 输入电压制式 | 380V三相三线 | |
| 输入频率 | 45-66Hz 额定值50Hz/60Hz | |
| 大输入电流 | ≤13A | |
| 功率因数 | ≥0.99 | |
| THD | ≤5% | |
| 输出特性 | 输出电压 | 42~58Vdc,缺省值53.5Vdc |
| 输出功率 | 6000W(304~530Vac) | |
| 坏境指标 | 工作温度 | -40℃~+75℃（45℃以上输出降额） |
| 存储温度 | -40℃~+75℃ | |
| 相对温度 | 5%~95%(无凝露） | |
| 海拔变化 | ≤4000m（2000~4000m时高温降额，每升高200m降低1℃） | |
| 保护特性 | 输入过压保护 | 过压保护点：>530Vac，<550Vac |
| 输入欠压保护 | 欠压保护点：<260Vac、 | |
| 输出过压保护 | 58.5~60.5 Vdc(可通过监控设置） | |
| 输出短路保护 | 可长期短路，短路消失后可自动恢复 | |
| 过温保护 | 过温保护点：75℃ | |
| 可靠性指标 | MTBF | >540,000小时 |
| 噪声 | 指标 | ≤45dB（25℃，满载） |
| 安规/EMC/ 防雷特性 | 安规认证 | 通过TUV、CE、UL、FCC认证，获得CB证书， 符合UL60950-1 IEC60950-1 CAN/CSAC22.2 No.60950-1 EN60950-1 |
| EMC | EN55022 Class B EN55024 EN61000-3-2 EN61000-3-3 ETSI EN300 386 ETSI EN301489 ITU-T K.20 | |
| 防雷 | 5KA |
Huawei r48100n1, r48100n1, Huawei 48V rectifier module, Huawei r48100n, r48100n, Huawei r48100n1 rectifier module 48v6000w 100A, Huawei r48100n1
Details

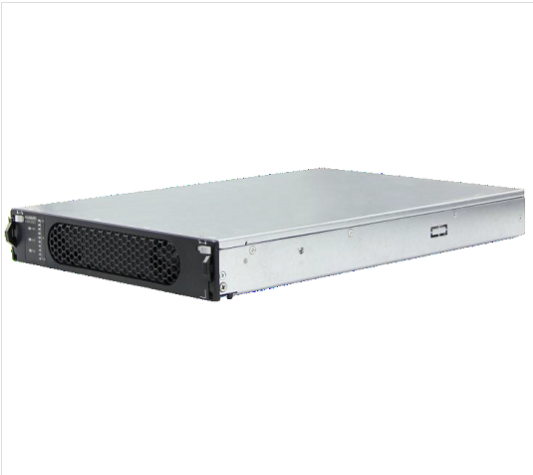

Huawei r48100gn1 is a digital three-phase rectifier module with an output power of 6000W, realizing 260 ~ 530vac input and 53.5vdc output
The output voltage can be adjusted by the monitoring module. With soft start, perfect input and output protection, low noise, parallelable, etc
advantage. The power supply monitoring technology of * * * is adopted to realize the real-time monitoring of the rectifier module and load, and the output voltage can be adjusted through the background.
? efficiency greater than 94%, significant energy saving
? input voltage range is from 260vac to 530vac
? operating temperature range - 40 ℃ ~ + 75 ℃
? thd ≤ 5%
? hot plug support
? full digital control
? smart meter support
? support can bus communication function
? support voltage and current adjustment function
? support LED display alarm
? TUV, CE, UL certified, CB certified
Efficiency curve
Load rate
Output external characteristic curve
Current / A
Voltage / V
Performance and function of Huawei r48100g1 a digital three-phase rectifier module designed and manufactured by Huawei r48100g1, which has a high output power of 6000W, realizes the conversion of 260 ~ 530vac input and 53.3vdc rated output. The output voltage can be adjusted by the monitoring module. It has the advantages of soft start, perfect input and output protection, low noise and parallel connection. The new power supply monitoring technology is adopted to realize the real-time monitoring of rectifier module and load, and realize the output voltage regulation function through the background. R48100g1 product features, efficiency greater than 96%, significant energy saving, wide input voltage range to 260 ~ 530vac, wide operating temperature range to - 40 ~ + 75 ℃ · total harmonic distortion (THD) < 5% · support hot plug function, full digital control, support intelligent electricity meter, support can bus communication function, support LED display alarm, support voltage and current adjustment function, meet ROHS requirements ·Pass TUV, CE and UL certification, and obtain CB certificate r48100g1 product parameters
Product category: r48100n1
Basic index size: 238mm (W) × 378mm (d) × 43mm (H)
Weight < 6kg
Cooling mode forced air cooling
Input characteristic: working voltage: 260vac ~ 530vac
Input voltage system 380V three-phase three wire
Input frequency: 45-66hz rated value: 50Hz / 60Hz
Large input current ≤ 13A
Power factor ≥ 0.99
THD ≤5%
Output characteristic: output voltage: 42 ~ 58vdc, default value: 53.5vdc
Output power: 6000W (304-530vac)
Environment index working temperature - 40 ℃ ~ + 75 ℃ (output derating above 45 ℃)
Storage temperature - 40 ℃ ~ + 75 ℃
Relative temperature 5% ~ 95% (no condensation)
Altitude change ≤ 4000m (high temperature derating at 2000-4000m, 1 ℃ for every 200m increase)
Protection characteristics input overvoltage protection point: > 530vac, < 550vac
Input undervoltage protection point: < 260vac
Output overvoltage protection 58.5 ~ 60.5 VDC (can be set by monitoring)
Output short circuit protection can short circuit for a long time, and can recover automatically after the short circuit disappears
Over temperature protection over temperature protection point: 75 ℃
Reliability index MTBF > 540000 hours
Noise index ≤ 45dB (25 ℃, full load)
Safety regulation / EMC / lightning protection characteristic safety regulation certification has passed TUV, CE, UL, FCC certification, and obtained CB certificate, meeting ul60950-1 iec60950-1 can / csac22.2 no.60950-1 en60950-1
EMC EN55022 Class B EN55024 EN61000-3-2 EN61000-3-3 ETSI EN300 386 ETSI EN301489 ITU-T K.20
Lightning protection 5ka
