中兴ZXDU68S301

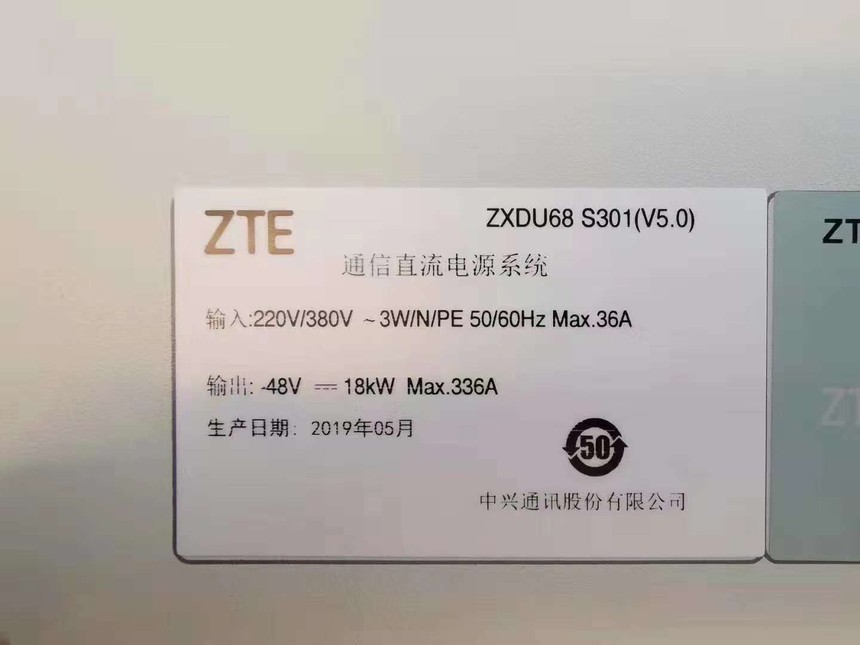

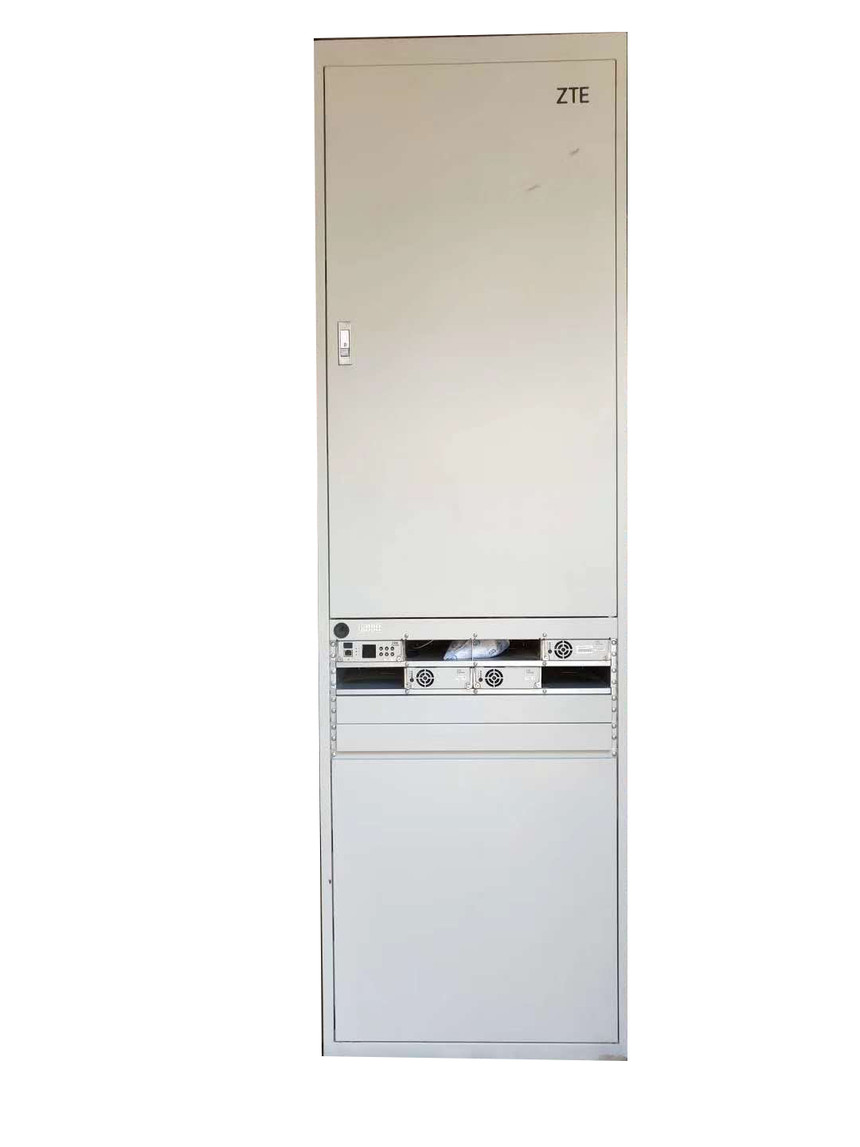

ZXDU68S301,中兴ZXDU68S301 中兴组合式通信电源柜ZXDU68S301 48V300A室内高频开关电源高2米 宽60里面，深60厘米

中兴通讯ZXDU68S301是一款高效率-48V室内组合电源系统,标准配置18kW。 包含更加丰富的外部接口:输入输出干接点、RJ45、RS232、RS485、USB,可以根据现场环境灵活组网。

中兴通信电源ZXDU68-S301（v5.0R02M04）48v智能高频开关电源

中兴通讯S301通信电源中兴ZXDU68S301室内高频开关电源机柜48V300A

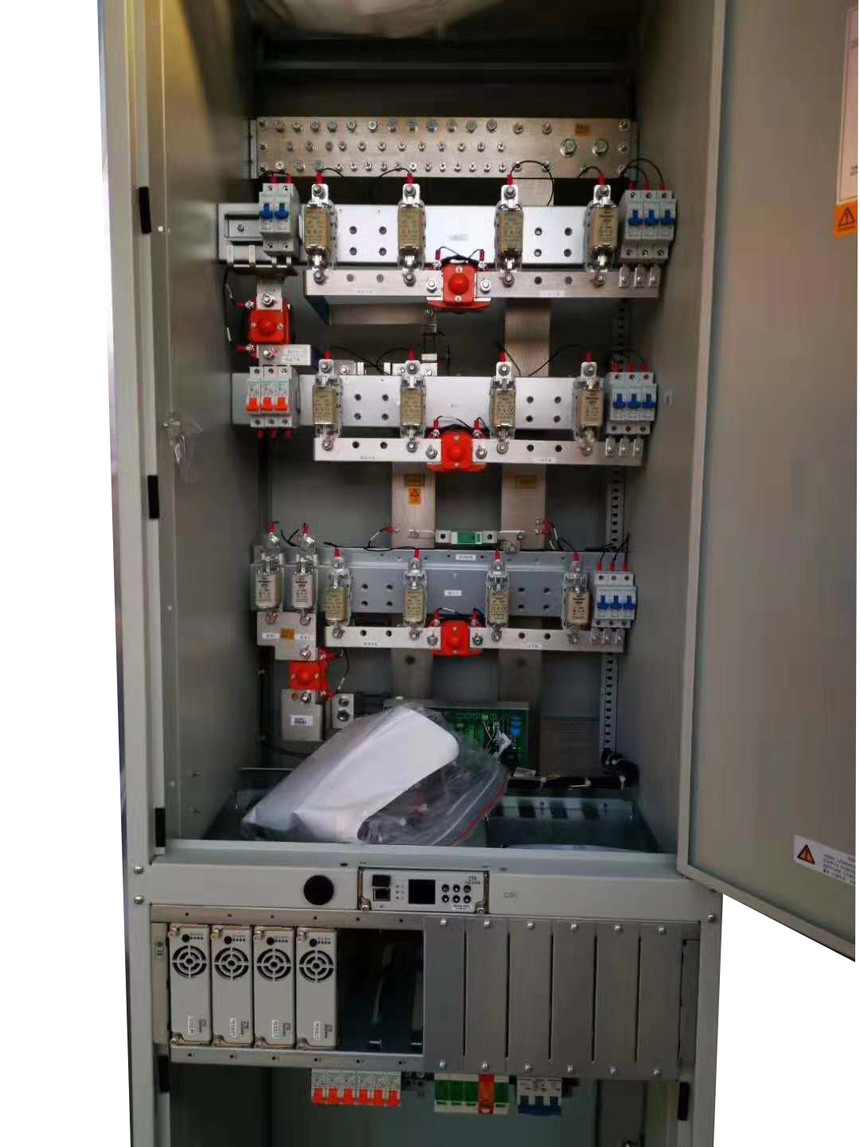

中兴通讯ZXDU68S301配电单元：交流输入：1X63a/3p,交流防雷40kA

直流输出：分为4个用户部分西安中熔熔丝：12x160A  电池：2x500A  断路器：9x63A/12路 2X32A/2路

整流模块：ZXD3000,监控模块;CSU500B

中兴通讯ZXDU68S301中兴直流开关电源柜性能特点

丨交流输入采用三相五线制（L1/L2/L3/N/PE），额定交流输入电压为220v

　　丨直流输出额定电压为-48V，-42v到-58v连续可调

　　丨在配满6个ZXDU2400(50ah)整流器情况下额定容量可达300A

　　丨采用一体化机柜内置电池仓，集交流配电，直流配电，整流，监控，和蓄电池于一体

　　ZXDU68 S301是中兴通讯一款率-48V室内组合电源系统，标准配置18kW。

　　包含更加丰富的外部接口：输入输出干接点、RJ45、RS232、RS485、USB，可以根据现场环境灵活组网。

　　系统采用效率高达96%的整流器，比传统电源更加节省能耗，减少CO2的排放。

　　功率密度更高，前接线前维护设计，并可内置4组蓄电池，减少占地面积和维护空间。

　　监控单元采用彩色屏幕，视觉效果更好，同时使用人性化的九宫格设计，操作更加便利。

　中兴通讯ZXD3000整流器

ZXD3000中兴通讯整流器实现系统的AC-DC转换，其电气特性如下

　　丨交流输入电压：单向三线（L/N/PE）

　　丨交流输入电压：额定电压为200v可破洞范围80v-300v

　　丨输出电流：额定输出50a

　　丨直流输出电压：额定输出48v，42-58v连续可调

　　用户体验

　　高功率密度，节省占地空间高达50%，减少站点租赁费用支出

　　80~300VAC宽输入电压范围，提升电池使用寿命

　　-40~ 70℃工作温度范围，野外适应能力更强，节省温控设备的费用

　　采用率整流器，比传统电源节省电能高达10%

中兴ZXDU68 S301中兴直流开关电源柜技术参数

高功率密度，节省占地空间高达50%，减少站点租赁费用支出

中兴通讯ZXDU68S301室内一体化高频开关电源48v高效电源 中兴ZXDU68S301室内一体化高频开关电源48v高效电源中兴ZXDU68S301室内一体化高频开关电源48v高效电源机柜

Zxdu68s301, ZTE zxdu68s301, ZTE combined communication power supply cabinet zxdu68s301 48v300a indoor high frequency switching power supply is 2m in height, 60 in width and 60 cm in depth

ZTE zxdu68s301 is a high efficiency - 48V indoor combined power supply system with standard configuration of 18kw. It includes more abundant external interfaces: input and output dry contact, RJ45, RS232, RS485, USB, which can be flexibly networked according to the field environment.

ZTE power supply zxdu68-s301 (v5.0r02m04) 48V intelligent high frequency switching power supply

ZTE S301 communication power supply ZTE zxdu68s301 indoor high frequency switching power cabinet 48v300a

Distribution unit: AC input: 1x63a / 3P, AC lightning protection 40ka

DC output: divided into 4 user parts Xi'an medium melting fuse: 12x160a battery: 2x500a circuit breaker: 9x63a / 12 channels, 2x32a / 2 channels

Rectifier module: zxd3000, monitoring module; csu500b

Performance characteristics of ZTE zxdu68 S301 ZTE DC switching power supply cabinet

The AC input adopts three-phase five wire system (L1 / L2 / L3 / N / PE), and the rated AC input voltage is 220 v

DC output rated voltage is - 48V, - 42V to - 58V continuously adjustable

The rated capacity can reach 300A with 6 zxdu2400 (50ah) rectifiers

Integrated cabinet with built-in battery bin is used to integrate AC power distribution, DC power distribution, rectification, monitoring and storage battery

Zxdu68 S301 is a rate - 48V indoor combined power supply system of ZTE, with a standard configuration of 18kw.

It includes more abundant external interfaces: input and output dry contact, RJ45, RS232, RS485, USB, which can be flexibly networked according to the field environment.

The system uses a rectifier with an efficiency of 96%, which can save energy and reduce CO2 emission.

Higher power density, front wiring maintenance design, and can be built-in 4 groups of batteries, reduce the floor area and maintenance space.

The monitoring unit adopts color screen, which has better visual effect. At the same time, it uses humanized nine grid design, which makes the operation more convenient.

ZTE zxd3000 rectifier

Zxd3000 ZTE rectifier realizes AC-DC conversion of the system, and its electrical characteristics are as follows

AC input voltage: unidirectional three wire (L / N / PE)

AC input voltage: the rated voltage is 200V, and the hole breaking range is 80v-300v

Output current: rated output 50A

DC output voltage: rated output 48V, 42-58v continuously adjustable

User experience

High power density, save space up to 50%, reduce site rental costs

80 ~ 300VAC wide input voltage range, improve battery life

-40 ~ 70 ℃ working temperature range, stronger field adaptability, saving the cost of temperature control equipment

Using rate rectifier, saving power up to 10% compared with traditional power supply

Technical parameters of ZTE zxdu68 S301 ZTE DC switch power supply cabinet

High power density, save space up to 50%, reduce site rental costs

ZTE zxdu68s301 indoor integrated high frequency switching power supply 48V high efficiency power supply ZTE zxdu68s301 indoor integrated high frequency switching power supply 48V high efficiency power supply ZTE zxdu68s301 indoor integrated high frequency switching power supply 48V high efficiency power cabinet
