​中恒IMPS00200

中恒通信嵌入式电源IMPS00200开关电源1U满配48V60A 中恒IMPS00200,IMPS00200

中恒IMPS00200嵌入式通信电源插框

输出48V60A交转直电源设备 高度1U

中恒通信电源IMPS00200 48V60A嵌入式开关电源

中恒IMPS00200嵌入式通信电源48V60A开关电源

中恒/伊顿IMPS00200子系统及壁挂系统是专为现代通信设备而设计的一种紧凑、高效、灵活的直流电源系统，系统整体体积小巧。子系统可嵌入在19＂的标准机架内，也可采用壁挂方式安装。
中恒/伊顿IMPS00200技术信息
交流输入：单相三线制
标称： 1? 220V，50/60HZ
电压范围： 1? 90-300V （175-275V RRC）
频率范围： 45-66 HZ
保护： 过载、短路保护
防雷： C 级防雷及告警 385V 15～20KA（8/20μS）
符合YD5098 标准要求，防雷器件YD/T1235 标准要求.

中恒/伊顿IMPS00200输出
输出分路过载和短路保护；任一路MCB 故障自动产生声光告警，标准二次下电功能（先
脱离次要负载后脱离电池）脱离电压和重接电压可任意设置。
分路缺省配置：次要负载分路： 4*32A
重要负载分路：3*32A、2*16A
电池小型断路器： 2*100A
注：全采用小型断路器MCB

中恒/伊顿IMPS00200系统参数
配置整流器： ZHR481800GIM，智能风冷 48V *整流器介绍请见后
单机可达系统容量：112.5A、225A @48V （APR48-3G）；180A @48V（APR48）
效率： >90%
启动冲击电流：≤输入电流有效值的120％
负载效应： ＜±0.5%
负载效应超调量：≤±1%（恢复时间＜100μS）
源效应： ＜±0.05%
开关机过冲幅度：无过冲
稳压精度： ＜±0.5%
均流误差： ＜±5%（50％-100％RRC）
整流器输出具有限流限功率特性，限流范围30％-100％额定电流可设置
衡重杂音： <2mV
峰-峰值杂音： <200mV
环境要求
环境温度：范围：-10℃～+50℃（额定输出）、-４0℃～+７0℃（可运行温度）
相对湿度： <95%(不结露)
海拔高度： <2000m （大于2000m 降容使用）
灰尘： <1mg/m3
振动： 以 1.5m/s 2 5-100Hz，连续作用于任何方向
注：以上根据整流模块不同，相应参数有所不同。

中恒/伊顿IMPS0020048V60A嵌入式通信机电源
中恒/伊顿IMPS00200电源系统是专为小容量系统而设计的，采用一体化壁挂式或嵌入式安装方式。根据安装场景，主要分为室外壁挂用小型电源系统、室内用壁挂小型电源系统及嵌入式小型电源系统，适用于综合接入、室内分布等多种应用场景。
该中恒/伊顿IMPS00200系统具有以下特点：
1.极宽的交流输入电压范围
2.灵活的模块化设计，系统扩容方便快捷
3.预置典型配置软件
4.安装灵活多样
5.快速更换，不需手调
中恒IMPS-B10200室内壁挂电源柜48V60A介绍：
 交流输入：单相输入，C级防雷
 直流输出：63A及以下×6路
? 电池分路：63A×1路，带低压脱离保护
? 系统容量：48V/60A
? 系统重量：32kg（不含整流模块）
中恒/伊顿IMPS0020048V60A嵌入式通信机电源.

Zhongheng communication embedded power imps00200 switching power supply 1U fully equipped with 48v60a Zhongheng imps0200, imps0200

Zhongheng imps0200 embedded communication power plug box

Output 48v60a AC to DC power supply, height 1U

Zhongheng communication power imps0200 48v60a embedded switching power supply

Zhongheng imps0200 embedded communication power supply 48v60a switching power supply

Zhongheng / Eaton imps0200 subsystem and wall mounted system is a compact, efficient and flexible DC power supply system specially designed for modern communication equipment. The overall volume of the system is small. The subsystem can be embedded in a 19 "standard rack or wall mounted.

Zhongheng / Eaton imps0200 technical information

AC input: single phase three wire system

Nominal: 1? 220 V, 50 / 60 Hz

Voltage range: 1? 90-300v (175-275v RRC)

Frequency range: 45-66 Hz

Protection: overload and short circuit protection

Lightning protection: Grade C lightning protection and alarm 385v 15 ~ 20KA (8 / 20 μ s)

Meet the requirements of yd5098 and YD / t1235

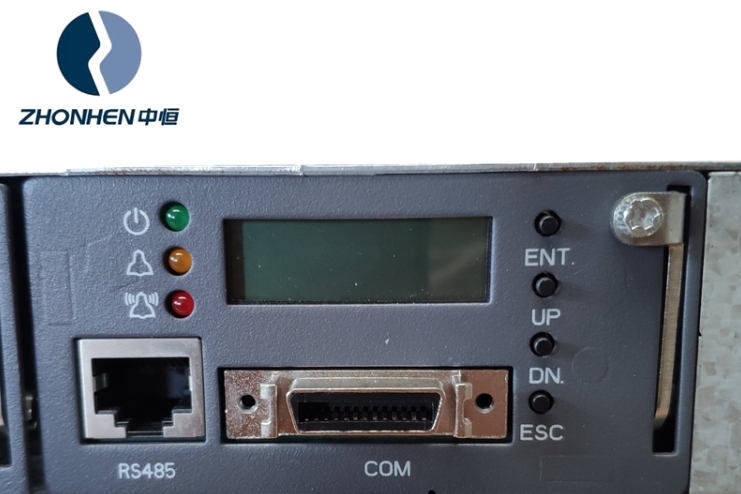

1601302994663420.png Zhongheng / Eaton imps0200 output

Output shunt overload and short circuit protection; any MCB fault automatically generates sound and light alarm, standard secondary power down function (first

The disconnection voltage and reconnection voltage can be set arbitrarily.

Shunt default configuration: secondary load shunt: 4 * 32A

Important load shunt: 3 * 32a, 2 * 16A

Battery miniature circuit breaker: 2 * 100A

Note: all miniature circuit breakers MCB are used

Zhongheng / Eaton imps0200 system parameters

Configuration rectifier: zhr481800gim, intelligent air cooling 48V * rectifier, please refer to the following

System capacity: 112.5a, 225A @ 48V (apr48-3g); 180A @ 48V (apr48)

Efficiency: > 90%

Starting impulse current: ≤ 120% of effective value of input current

Load effect: ＜ ± 0.5%

Load effect overshoot: ≤± 1% (recovery time < 100 μ s)

Source effect: ＜ ± 0.05%

Overshoot range: no overshoot

Voltage stabilization accuracy: ＜ ± 0.5%

Current sharing error: < 5% (50% - 100% RRC)

The rectifier output has limited current and power limiting characteristics, and the current limiting range is 30% - 100% of rated current

Balanced noise: < 2mV

Peak to peak noise: < 200mV

Environmental requirements

Ambient temperature: range: - 10 ℃ - + 50 ℃ (rated output), - 40 ℃ - + 70 ℃ (operating temperature)

Relative humidity: < 95% (no condensation)

Altitude: < 2000m (for capacity reduction over 2000m)

Dust: < 1mg / m3

Vibration: continuously acting on any direction with 1.5m/s 25-100hz

Note: the above parameters are different according to different rectifier modules.

Zhongheng / Eaton imps00020048v60a embedded communication power supply

Zhongheng / Eaton imps0200 power supply system is specially designed for small capacity system and adopts integrated wall mounted or embedded installation mode. According to the installation scenarios, it is mainly divided into outdoor wall mounted small power supply system, indoor wall mounted small power supply system and embedded small power supply system, which are suitable for integrated access, indoor distribution and other application scenarios.

The Zhongheng / Eaton imps0200 system has the following characteristics:

1. Wide AC input voltage range

2. Flexible modular design, convenient and fast system expansion

3. Preset typical configuration software

4. Flexible installation

5. Quick replacement without manual adjustment

Zhongheng imps-b10200 indoor wall mounted power cabinet 48v60a

AC input: single phase input, class C lightning protection

DC output: 63A and below × 6 channels

? battery shunt: 63A × 1, with low-voltage disconnection protection

? system capacity: 48V / 60A

? system weight: 32kg (excluding rectifier module)

Zhongheng / Eaton imps 0020048 V60A embedded communication power supply
