中达电通/台达WPS-48/50YF室外一体化机柜48V250A

台达/中达电通WPS-48/50YF室外户外一体化通信电源柜48V250A

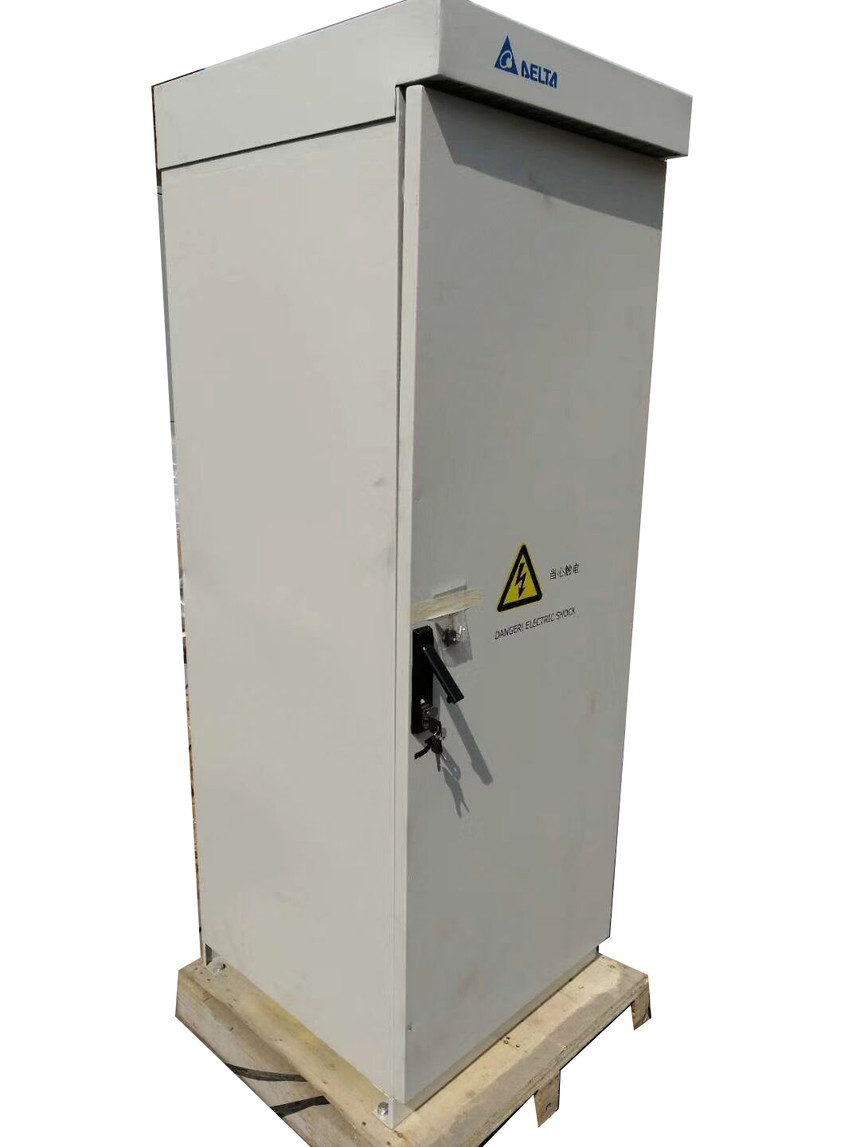

台达/中达电通WPS-48/50YF产品特点：机柜尺寸：长700x宽700x高1800 单位mm

・模块容许电网输入电压变化范围宽(90Vac~300Vac),可承受380Vac,模块不损坏

•整流模块采用先进的软开关技术，功率密度高

•采用先进的拓扑电路，宽负载范围内实现软开关技术，转换效率高

•采用Interleave PFC技术，功率因数大于0.99,交流输入电流谐波失真低，小于5%

•高功率密度：功率密度大于2W/cm3(34W/inch3)

•智能监控单元对蓄电池采用先进的充电管理模式，有助于延长电池使用寿命

•具有对蓄电池电压进行温度补偿功能

•具有低压隔离开关，保护电池以避免过度放电

•系统具有效能管理功能，可以有效地提高系统的工作效率，达到节能减排的目的

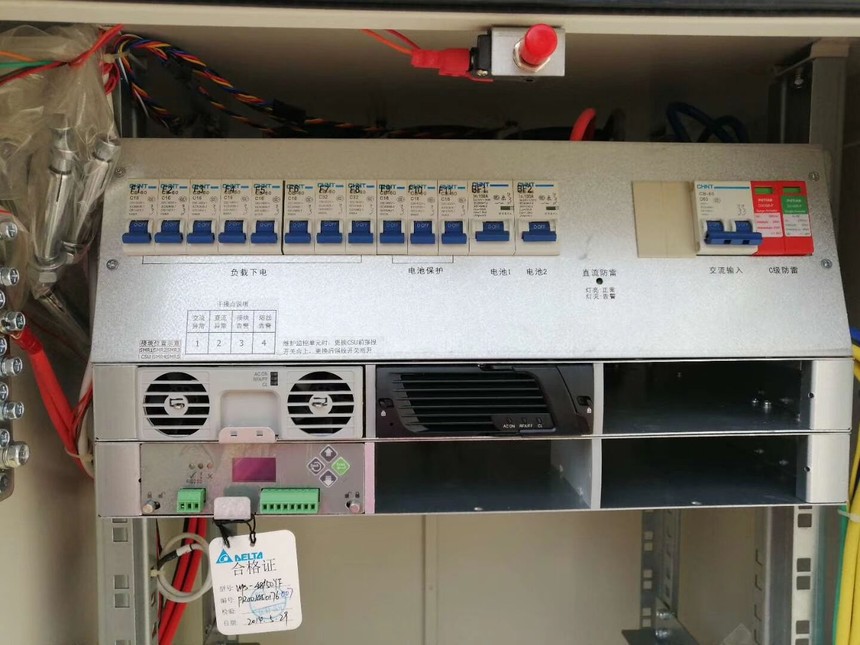

•系统内整流模块可热插拔，所有调节、操作都在系统前部，因而系统安装、扩容和维护极为方便

•先进的负载均流技术，均流特性极佳

•具有过电流、过电压、过温度等多种保护和告警功能，系统可靠性高

•系统具有防尘、防水、防热、防冷、防潮、防霉、防腐蚀和防盗等多种功能，适应环境能力强，

可在室外各种恶劣环境中正常使用

・系统可承受1120W/m2等级太阳辐射

•低温地区系统可配置加热装置，能适应环境温度范围-40°C-45°C的恶劣条件考验

•系统铁质外壳和支架，零件具有双层防锈措施，非铁质的金属外壳，具有防氧化保护膜或防氧化处理

•机柜一体成形、门板嵌入、铉链内藏，具有良好防盗、防撬及防擅自拆卸等防盗措施

•防护等级：热交换型：电源仓IP55,电池仓IP44;风冷型：电源仓IP45,电池仓IP44

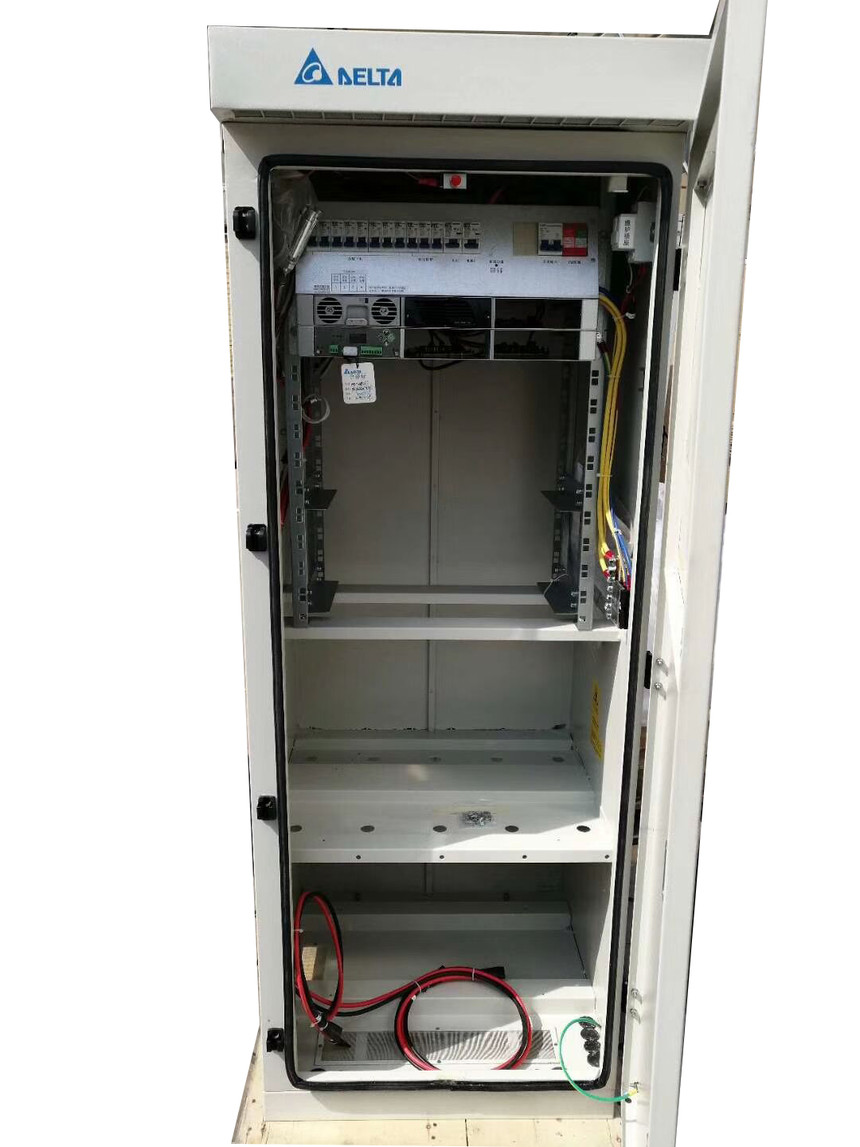

•电池仓与电源仓相互独立，风扇散热采用温控，电池仓独立风扇散热

•系统装有多级防雷、防浪涌电压保防护装置，抗雷击能力强

•具有系统门禁、加热器告警、系统机柜温度告警功能

•机柜散热系统风扇采用温度调速控制，延长风扇寿命，同时达到节能效果

适用场合

产品适合楼顶、城乡结合部、农村、旅游风景区以及高速公路沿线、山区及边缘地区的2G/3G 无线网络覆盖。

台达/中达电通WPS-48/50YF系列室外通信电源系统

中达电通WPS系列室外通信电源系统是本公司集多年开发通信电源的经验和技术， 为满足客户室外通信系统的供电需求而开发的新型电源系统。产品适合大楼顶部、城乡 结合部、农村、旅游风景区以及高速公路沿线、山区及边缘地区。产品安装施工方便、 投资少，维护成本低，是低成本小型化室外通信系统的理想供电系统。

Delta / ZTC wps-48 / 50yf outdoor integrated communication power cabinet 48v250a

Delta / Zhongda electric power wps-48 / 50yf product features: cabinet size: length 700X width 700X height 1800 unit mm

The module allows a wide range of grid input voltage variation (90vac ~ 300VAC), can withstand 380VAC, and the module is not damaged

The rectifier module adopts advanced soft switching technology with high power density

It adopts advanced topology circuit, realizes soft switching technology in wide load range, and has high conversion efficiency

Using interleave PFC technology, the power factor is greater than 0.99, and the harmonic distortion of AC input current is low, less than 5%

High power density: power density greater than 2W / cm3 (34W / inch3)

The intelligent monitoring unit adopts advanced charging management mode for the battery, which helps to prolong the service life of the battery

It has the function of temperature compensation for battery voltage

It has a low voltage isolating switch to protect the battery from excessive discharge

The system has the function of efficiency management, which can effectively improve the working efficiency of the system and achieve the purpose of energy saving and emission reduction

The rectifier module in the system can be hot pluggable, and all adjustment and operation are in the front of the system, so the system installation, expansion and maintenance are very convenient

Advanced load sharing technology with excellent current sharing characteristics

It has over-current, over-voltage, over temperature and other protection and alarm functions, and the system has high reliability

The system has many functions, such as dust-proof, water-proof, heat-proof, cold-proof, moisture-proof, mould proof, corrosion-proof and anti-theft functions, and has strong adaptability to the environment,

It can be used in outdoor environment

The system can withstand 1120w / m2 solar radiation

The system can be equipped with heating device in low temperature area, which can adapt to the harsh conditions in the ambient temperature range of - 40 ° C to 45 ° C

The system is made of iron shell and bracket, parts are provided with double-layer anti rust measures, and non-ferrous metal shell is provided with anti-oxidation protective film or anti-oxidation treatment

The cabinet is integrally formed, the door plate is embedded, and the Xuan chain is hidden inside. It has good anti-theft measures such as anti-theft, anti prying and anti unauthorized disassembly

Protection grade: heat exchange type: power supply cabinet IP55, battery compartment IP44; air cooling type: power supply compartment IP45, battery compartment IP44

The battery compartment and power supply compartment are independent of each other, the fan cooling adopts temperature control, and the battery compartment is cooled by independent fan

The system is equipped with multi-stage lightning protection and surge protection devices, with strong lightning protection ability

It has the functions of system access control, heater alarm and system cabinet temperature alarm

The fan of the cooling system of the cabinet adopts temperature speed regulation control to prolong the fan life and achieve energy saving effect

Applicable occasions

The product is suitable for 2G / 3G wireless network coverage on the roof, urban-rural fringe, rural, tourist scenic areas, along the highway, mountainous areas and marginal areas.

Delta / ZTC wps-48 / 50yf series outdoor communication power supply system

ZTC WPS series outdoor communication power supply system is a new power supply system developed by the company to meet the power supply requirements of customers' outdoor communication system based on years of experience and technology in developing communication power supply. The products are suitable for building top, urban-rural junction, rural, tourist scenic areas and along the highway, mountainous areas and marginal areas. It is an ideal power supply system for low-cost miniaturized outdoor communication system because of its convenient installation, low investment and low maintenance cost.
