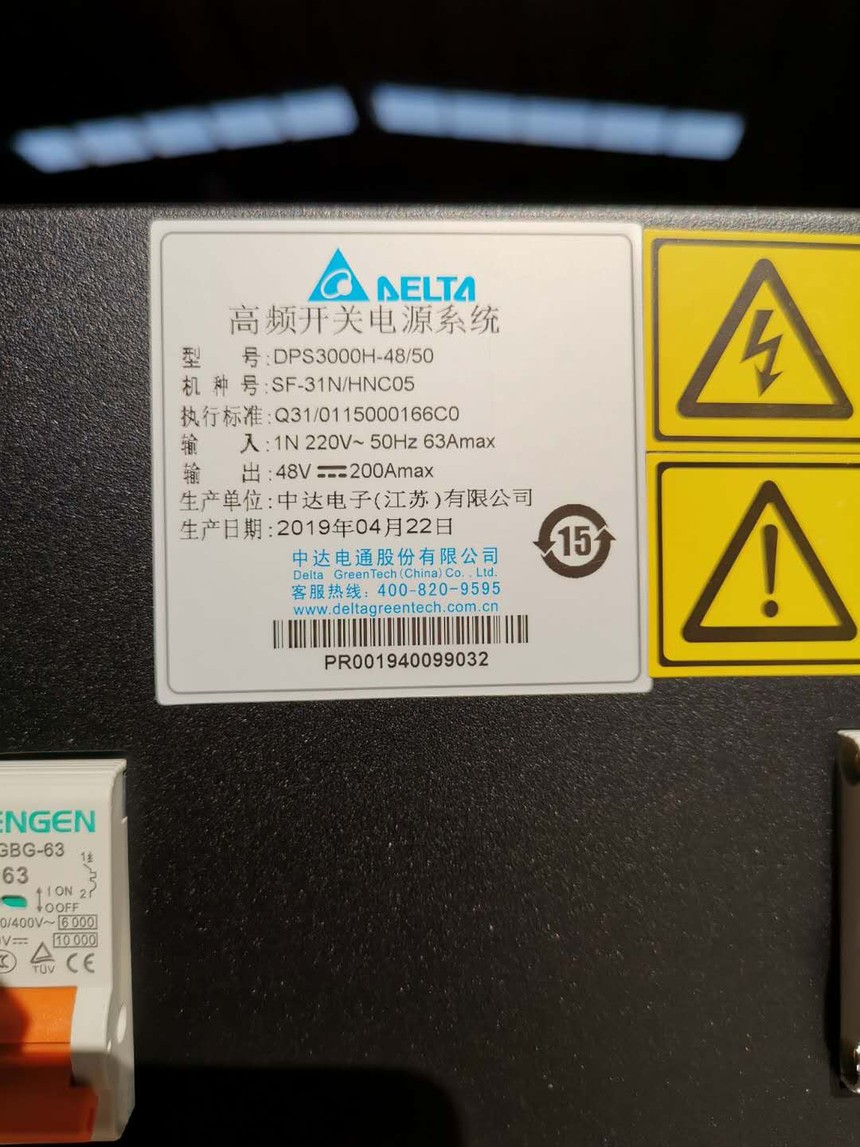

中达电通/台达DPS3000H-48/50

DPS3000H-48/50,中达电通DPS3000H-48/50,台达DPS3000H-48/50嵌入式通信开关电源48V200A

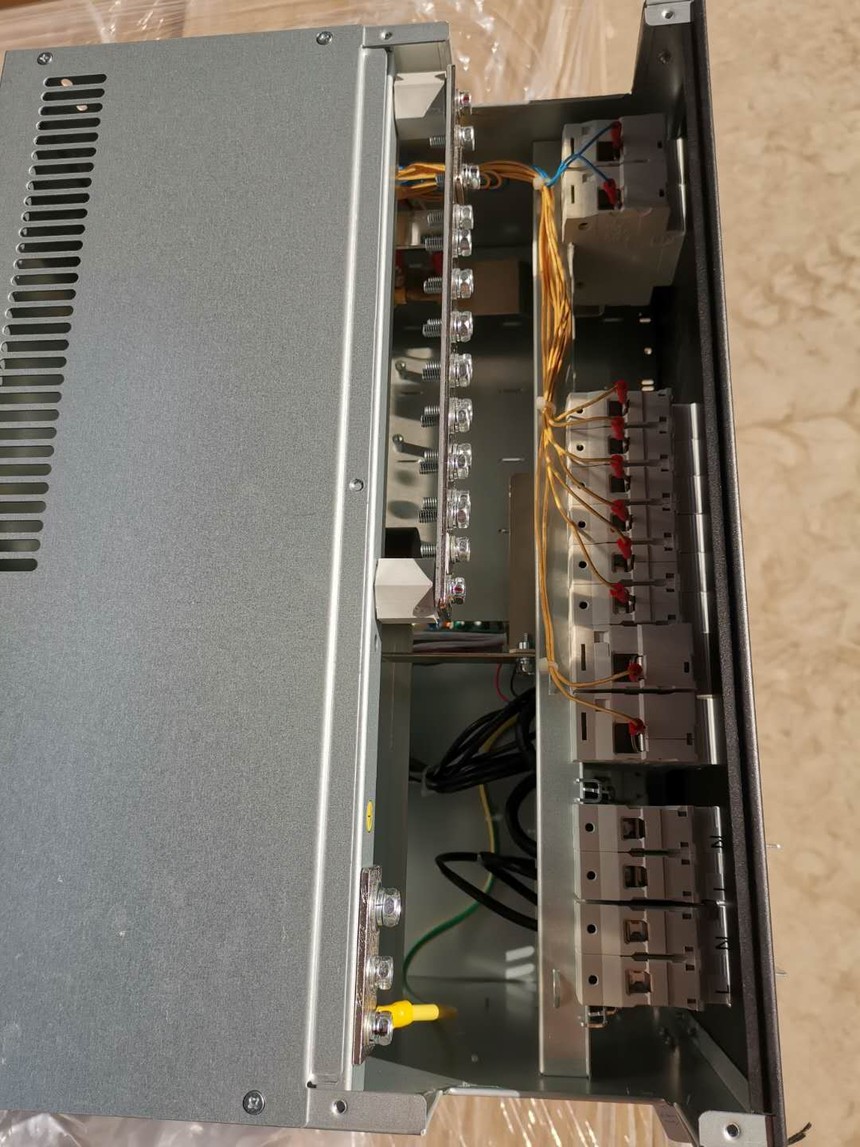

200A嵌入式共用电源系统本系统塑号为中达电通DPS3000H-48/50 200A最大可配置4台台达DPs30H系列整流模块,最大提供48V200A输出容量,宽度为标准19英寸,高度为7U,深度为350cm,直流配电单元设计在机柜上部,交流配电单元设计在机柜下部直流配电分为4个用组,可分别进行4个用户组的直流计量和根据时间分别下电,配置Rs485或以太网监控按口

中达电通/台达DPS3000H-48/50 嵌入式通信开关电源488V200A高效系统50A高效模块,共用电系统,单相220v交流输入200A

基本配置

交输输入：

交流输入开关63A/2Px2手动切换

交流输出分路(可选16APx5,10A1P×4,10A维护插座x1

防雷c级,标称20kA,有退耦器,可选配B级防雷

直流输出：

负载下电:断路器：100A/1Px2, 32Ax1, 63Ax2

电池分路：断路器125A/1Px2

设备尺寸(mm）482Wx393Dx310H

台达铁塔DPS3000H系列嵌入式高效率通信电源系统本公司集多年设计、制的经验,针对铁塔公司实际使用场景及节能减排要求,开发出嵌入式DPS3000H-48/50系列离效叠信电添系统本系列电添能够承受更完的交流轴入电压范围和更完的工作基度范围,更能活应不同的应用场合.

Dps3000h-48 / 50, Zhongda Diantong dps3000h-48 / 50, Delta dps3000h-48 / 50 embedded communication switching power supply 48v200a

200A embedded common power supply system the plastic number of this system is Zhongda Diantong dps3000h-48 / 50 200A. The maximum configuration of 200A is 4 Delta dps30h series rectifier modules. The maximum output capacity of 48v200a is provided. The width is 19 inches, the height is 7U, and the depth is 350cm. The DC distribution unit is designed in the upper part of the cabinet, and the AC distribution unit is designed in the lower part of the cabinet, It can be used for DC measurement of 4 user groups and power off according to time, and RS485 or Ethernet monitoring press port can be configured
