中兴ZXDU68T301

ZTE中兴ZXDU68 T301 V5.0室内通信机柜48V300A高频直流开关电源机柜,中兴ZXDU68 T301 V5.0室内通信直流电源系统通信基站用现货

ZXDU68T301中兴通讯电源系统的技术指标

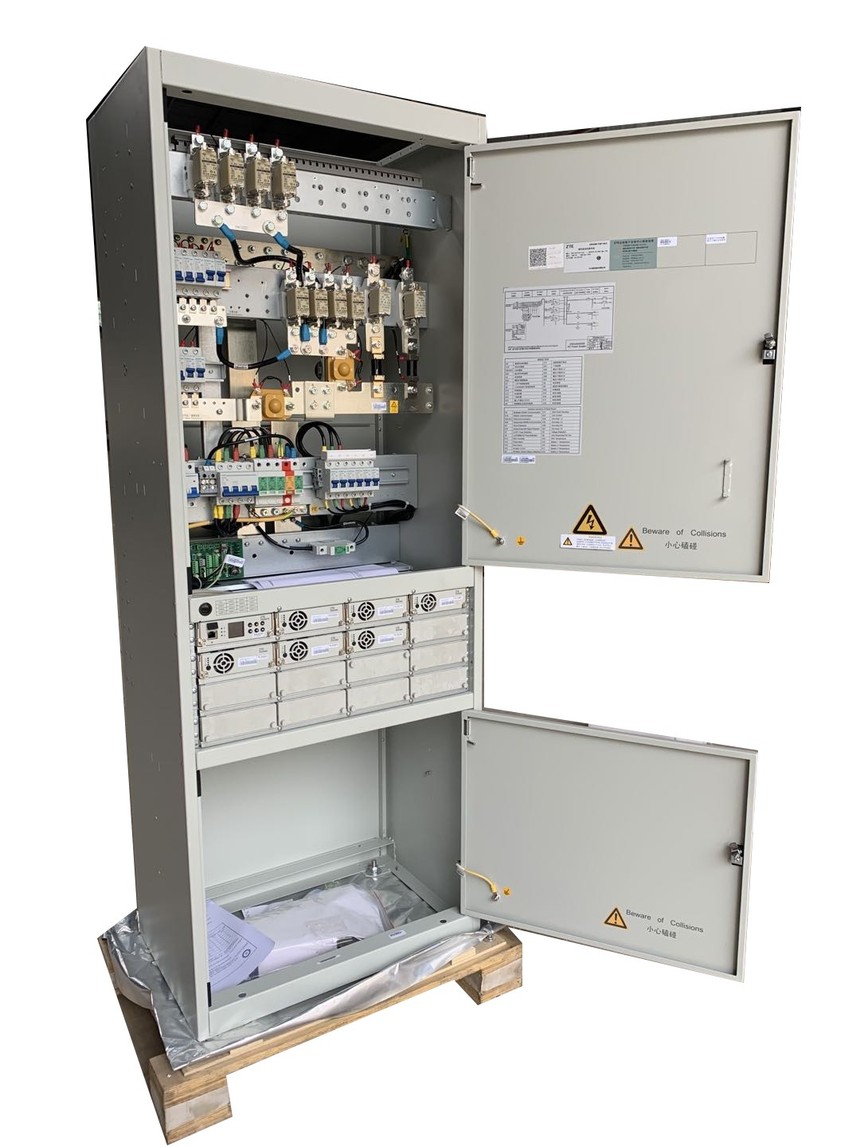

ZXDU68 T301中兴通信电源系统的外形如下图所示，技术指标见下表。ZXDU68 T301系列电源系统，机架高度为1.6米，具有超宽的输入电压范围，允许输入电压在80 V~300 V之间。整个系统由ZXD3000 50A（V5.5）模块构成，满配置300A。先进的监控模块具有简易的动力环境监控功能，实现对温度、湿度、红外、水烟、门禁等环境量的监控，主要适用于中等容量需求的中心局站和基站控制器站点。

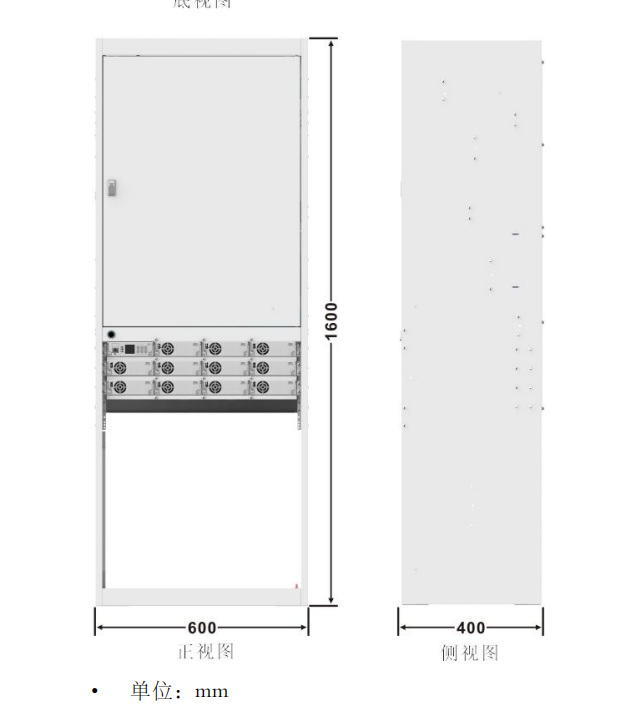

机柜的外形尺寸 1600 mm（高）×600 mm（宽）×400 mm（深） 安装孔的间距 462 mm（宽）×276 mm（深） 安装孔的直径 ø 14 mm

外部结构的特点： l 机柜的后部的面板均可拆卸。 l 机柜下部的前后门可选配。 l 机柜靠墙安装时，机柜后部与墙壁的最小间距为100 mm。 l 机柜的高度为1600 mm。在顶部加配400 mm高的顶罩，使得整机高度达到2000 mm。 l 机柜或顶罩的顶部可安装防尘盖（选配）。防尘盖由多个防尘盖单元拼装组成。线 缆穿过防尘盖单元的海绵条引入机柜内。

系统组件 ZXDU68 T601直流电源系统由交流配电单元、直流配电单元、ZXD3000整流器、监控组 件和蓄电池组成。其中，监控组件由CSU500B监控单元、背板（BACK板）以及内部监 控线路组成。 蓄电池安装在机柜外，其他的系统组件集中在机柜内。

产品配置 ZXDU68 T601中兴通信直流电源系统的产品配置清单

产品配置清单 项目 配置说明

机柜 1个室内机柜，1600 mm（高）×600 mm（宽）×400 mm（深）

交流输入 有3种交流输入模式可选择（三选一） l 交流单路手动输入模式（标配） l 交流双路手动输入模式（选配） l 交流双路自动输入模式（选配）

整流器空开 最多配置6个 备注：整流器空开的数量与整流器槽位的数量一致 交流防雷保护 1套，C级，通流量Imax = 40 kA (8/20 μs) 交流配电 交流备用输出 可选择配置单极空开或三极空开，每相输出的最大容量为25 A

项目 配置说明

电池输入 2路l 2×500 A熔丝（标配） l 2×600 A熔丝（选配）

下电保护方式 l 一次下电（LLVD1） l 二次下电（LLVD2）

直流负载输出（标准 配置）

l LLVD1：4×100 A熔丝+2×63 A空开

l LLVD2：2×10 A+2×32 A空开 直流负载输出（可选 配置）

  l LLVD1：6×160 A及以下熔丝+7×63 A及以下1P空开

l LLVD2：7×63 A及以下1P空开

备注：实际配置以合同定制为准 直流负载输出（扩展 配置）

l 最多扩展10×100 A及以下熔丝，或24×63 A及以下1P 空开

l 自由组合LLVD1负载组与LLVD2负载组

备注：实际配置以合同定制为准 直流防雷保护 1套，通流量Imax = 15 kA (8/20 μs) 直流配电 直流应急照明 无 整流模块 ZXD3000（V5.5）开关整流器，最多11个 监控单元 CSU500B监控单元，SV1.03 信号接口 由BACK板提供干接点接口、通讯接口和环境变量检测接口。详 细说明参见“3.5 背板的信号接口” 监控模块 电池温度传感器 2套 48 V蓄电池组 2组，

可选配，外置在ZXDU68 T601系统的机柜外 下部前后门板 1套，可选配 防尘盖板 1套，可选配 安装在机柜的顶部，用于阻挡灰尘落入机柜内（不防水） 頂罩 1套，可选配 l 400 mm×600 mm×400 mm（高×宽×深） l 安装在机柜的顶部，用于增加机柜的整体高度 机柜附件 底座 1套，可选配 l 底座的型号由合同确定 l 安装在机柜的底部

有三种交流输入模式可供选择，分别是单路手动输入模式、双路手动输入模式和双路自 动输入模式。 l 单路手动输入模式：配置单个交流输入空开。 l 双路手动切换输入模式：配置两个交流输入空开（带机械互锁）。 l 双路自动切换输入模式：配置交流接触器（带机械和电气互锁）。

灵活的监控组网 提供输入/输出干接点、RJ45以太网接口、RS232通信接口、RS485通信接口，满足Telnet、 HTTP、FTP和SNMP组网需求。

系统指标 项目 指标 系统型号 ZXDU68 T301（V5.0R09M01） 监控模块 CSU500B监控单元 整流模块 ZXD3000（V5.5）开关整流器 根据负载需求配置2个～6个

系统额定输出容量 18 kW（满配置）

温度限功率 l 环境温度在-40 ℃～55 ℃范围内，整流模块输出功率为100%。

l 环境温度在55 ℃～70 ℃范围内，整流模块输出采用线性限功率；温度升 高输出功率线性递减，70 ℃时输出功率不小于62.6%。

l 环境温度＞70 ℃，整流模块输出功率为0%（关机保护）。 输入限功率

l 交流输入电压在176 V～（295 V±5 V）范围内，整流模块输出功率为 100%。

l 交流输入电压在110 V～176 V范围内，整流模块输出功率为55%～100%。

l 交流输入电压在（85 V±5 V）～110 V范围内，整流模块输出采用线性 限功率，输出功率不小于40%。

l 交流输入电压≤85 V±5 V或＞295 V±5 V，整流模块输出功率为0%。 系统效率 l ≥93.5%（30%额定功率）

l ≥95.5%（50%额定功率） l ≥95.5%（100%额定功率） 整机噪音 ≤55 dB（A） 监控组网方式 RS232/RS485串口直连方式、以太网方式、主设备透传方式 平均无故障时间 （MTBF） ≥3.2×105 h 产品设计寿命 10年～15年 符合EN61000和DIN/EN 55022的要求。具体指标如下： 静电放电 接触8 kV，空气15 kV 辐射抗扰 10 V/M 1 kHz 80%AM调制 电快速瞬变脉冲群 交流端口 4 kV，直流端口和信号端口2 kV 浪涌抗扰度 交流端口6 kV 传导抗扰度 3 V 1 kHz 80%AM调制 电压跌落 2级 传导骚扰 B级 电磁兼容性 辐射骚扰 B级

ZTE ZTE zxdu68 T301 V5.0 indoor communication cabinet 48v300a high frequency DC switching power supply cabinet, ZTE zxdu68 T301 V5.0 indoor communication DC power supply system communication base station in stock

Wechat pictures_ 20201104213758.jpg

Technical specifications of ZTE power supply system

Technical characteristics

index

Module composition

It consists of 50 a modules with full configuration of 300 a (6)

AC input

380 V / 220 V system

80 V ~ 300 V (220 VAC input)

45 Hz~65 Hz

63 A (maximum)

Single input

DC output

-42 V~-58 V

efficiency

≥90%

power factor

≥0.99

Dimensions (height × width × depth)

1600mm×600 mm×400 mm

The appearance of zxdu68 T301 ZTE power supply system is shown in the figure below, and the technical indexes are shown in the table below. Zxdu68 T301 series power supply system, rack height is 1.6 meters, with ultra wide input voltage range, the allowable input voltage is between 80 V and 300 v. The whole system is composed of zxd3000 50A (v5.5) module with full configuration of 300A. The advanced monitoring module has simple power environment monitoring function, which can realize the monitoring of temperature, humidity, infrared, hookah, access control and other environmental quantities. It is mainly suitable for central office station and base station controller station with medium capacity demand.


The overall dimension of the cabinet is 1600 mm (H) × 600 mm (W) × 400 mm (d), and the spacing of mounting holes is 462 mm (W) × 276 mm (d), and the diameter of mounting holes is (14 mm)

Features of external structure: l the rear panel of the cabinet can be removed. The front and rear doors at the lower part of the cabinet can be optional. L when the cabinet is installed against the wall, the minimum distance between the rear of the cabinet and the wall is 100 mm. L the height of the cabinet is 1600 mm. A 400 mm high top cover is added on the top to make the height of the whole machine reach 2000 mm. L dust cover can be installed on the top of cabinet or top cover (optional). The dust cover is composed of a plurality of dust cover units. The cable is led into the cabinet through the sponge strip of dust cover unit.

The system component zxdu68 T601 DC power supply system consists of AC distribution unit, DC distribution unit, zxd3000 rectifier, monitoring assembly and battery. The monitoring module is composed of csu500b monitoring unit, back board and internal monitoring circuit. The battery is installed outside the cabinet, and other system components are concentrated in the cabinet.

Product configuration zxdu68 T601 ZTE DC power system product configuration list

Product configuration list item configuration description

Cabinet: 1 indoor cabinet, 1600 mm (height) × 600 mm (width) × 400 mm (depth)

There are three AC input modes for AC input, i.e. 1 AC single channel manual input mode (standard configuration), 1 AC dual channel manual input mode (optional) and AC dual channel automatic input mode (optional)

The maximum number of air switches of rectifier is 6. Remarks: the number of air switches of rectifier is consistent with the number of slots of rectifier. One set of AC lightning protection is provided, class C, with IMAX = 40 Ka (8 / 20 μ s). Single pole air switch or three pole air switch can be configured for AC standby output of AC distribution, and the maximum output capacity of each phase is 25 A

Project configuration description

Battery input 2-way L 2 × 500 a fuse (standard) l 2 × 600 a fuse (optional)

Power down protection mode l primary power down (llvd1) and secondary power down (llvd2)

DC load output (standard configuration)

L llvd1: 4 × 100 a fuse + 2 × 63 a air switch

L llvd2: 2 × 10 A + 2 × 32 a air switch DC load output (optional configuration)

L llvd1: 6 × 160 A and below fuse + 7 × 63 A and below 1p air switch

L llvd2: 1p air switch of 7 × 63 A and below

Note: the actual configuration is subject to the contract customization. DC load output (extended configuration)

L expand the fuse of 10 × 100 a and below, or 24 × 63 A and below 1p air switch

L free combination of llvd1 load group and llvd2 load group

Note: the actual configuration is subject to the contract, 1 set of DC lightning protection, IMAX = 15 Ka (8 / 20 μ s) DC distribution, DC emergency lighting without rectifier module zxd3000 (v5.5) switch rectifier, up to 11 monitoring units, csu500b monitoring unit, sv1.03 signal interface is provided by the back board, including dry contact interface, communication interface and environmental variable detection interface. For detailed description, please refer to "3.5 signal interface of backplane" monitoring module battery temperature sensor 2 sets, 48 V battery pack 2 groups,

Optional: 1 set of front and rear door panels outside the lower part of the cabinet of zxdu68 T601 system; 1 set of dust cover plate can be selected; 1 set of top cover can be installed on the top of the cabinet to prevent dust from falling into the cabinet (not waterproof); optional 1 set of 400 mm × 600 mm × 400 mm (H × w × d) l can be installed on the top of the cabinet to increase the overall height of the cabinet and the base of the cabinet accessories 1 set. The model of optional base is determined by the contract. L is installed at the bottom of the cabinet

There are three AC input modes to choose from: single channel manual input mode, double channel manual input mode and double channel automatic input mode. L single channel manual input mode: configure single AC input air switch. L two way manual switching input mode: two AC input air switches (with mechanical interlock) are configured. L two way automatic switching input mode: configuration of AC contactor (with mechanical and electrical interlock).

Flexible monitoring network provides input / output dry contact, RJ45 Ethernet interface, RS232 communication interface and RS485 communication interface to meet the networking requirements of Telnet, HTTP, FTP and SNMP.

System index project index system model zxdu68 T301 (v5.0r09m01) monitoring module csu500b monitoring unit rectifier module zxd3000 (v5.5) switch rectifier is configured according to the load demand

System rated output capacity 18 kW (full configuration)

The ambient temperature is - 40 ℃ - 55 ℃
